StormTec Leak Stop Pressure Reducing Valve

StormTec Leak Stop Pressure Reducing Valve

This pressure reducing leak stop valve is a compact reducing valve that is designed to simultaneously perform the functions of reducing pressure and blocking raw water in the event of a water leak.  This unit is a Leak Stop + Pressure Reducing Valve, if the leak valve detects a water leak it will shut the water off to your appliance within 10 seconds.

• Working Pressure Range: 0.5~10bar (7~140psi).
• Working Hours: Within 10 seconds after contact with water.
• Pressure Tolerance: 1.0bar.
• Water Inlet/Outlet: 1/4″ Fitting.
• Working Temperature: 1~40ºC (33~104ºF).
• Pressure Reducing: Reduces to 42 PSI.
• Replaceable Discs.
• Read our article on Oem Vs. Non-Oem Parts.

How To Replace The Pulp

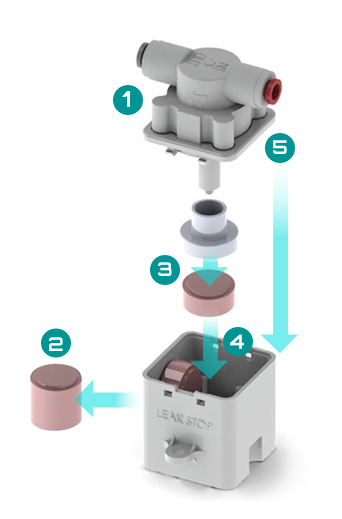

• Refer to diagram above.
• Pull the top cover upward and separate it from the lower body.
• Remove the pulp that has stretched due to contact with water.
• Combine the new pulp with the pulp case.
• Insert the pulp combined with the case into the body.
• Press down on the top cover and reconnect it with the lower body
